For this assignment, we will write a program to read in a list of triangle data and draw an image comprised of those triangles.

The Abstract Triangle

Begin by creating an abstract Triangle class. The class will have the following members and corresponding implementations:

public
- default constructor - sets the color to white, specifies the number of vertices as 3, allocates the list to have three elements (if necessary)
- destructor - deallocates the list (if necessary)
- void setColor(const Color color) - sets the private color data member
- void draw(RenderTarget& window) - creates a ConvexShape, sets the points for each coordinate, sets the fill color, draws it to the provided window
- a pure virtual bool setCoordinates() function that accepts the (x, y) coordinate for three vertices
protected
- the number of vertices making up the triangle as an integer
- a list of (x, y) coordinates
private
- the color of the triangle as an SFML Color object

The Concrete ScaleneTriangle

Now we'll begin creating concrete instances of a triangle. Create a class called ScaleneTriangle that extends Triangle. It will need to override the setCoordinates() method. Given the three vertex coordinates, compute the length of each side. If the three sides form a triangle (that is - all three sides are non-zero in length and the sum of two is greater than the third), then set the vertex coordinates in the list and return true. If the sides do not form a triangle, return false.

The Concrete IsoscelesTriangle

Create a class called IsoscelesTriangle that extends Triangle. It will need to override the setCoordinates() method. Given the three vertex coordinates, compute the length of each side. If the three sides form a triangle (that is - all three sides are non-zero in length and the sum of two is greater than the third) AND at least two of the three sides are equal in length, then set the vertex coordinates in the list and return true. If the sides do not form an isosceles triangle, return false.

The Concrete EquilateralTriangle

Create a class called EquilateralTriangle that extends Triangle. It will need to override the setCoordinates() method. Given the three vertex coordinates, compute the length of each side. If the three sides form a triangle (that is - all three sides are non-zero in length and the sum of two is greater than the third) AND all three of the three sides are equal in length, then set the vertex coordinates in the list and return true. If the sides do not form an equilateral triangle, return false.

Read the File

A sample triangle data file is provided. The file contains some number of lines in the following format:

T x1 y1 x2 y2 x3 y3 r g b

Where each value is:

T - a character denoting the triangle type. One of S, I, or E
x1 - the double x coordinate for vertex 1
y1 - the double t coordinate for vertex 1
x2 - the double x coordinate for vertex 2
y2 - the double t coordinate for vertex 2
x3 - the double x coordinate for vertex 3
y3 - the double t coordinate for vertex 3
r - the integer red component of the color
g - the integer green component of the color
b - the integer blue component of the color

We want to be sure to leverage runtime polymorphism as we read in the file. Therefore, create a list of Triangle pointers. As you read each line, create a Triangle pointer of the corresponding type. Call the setCoordinates() method with the three vertex coordinates. If the vertices form a triangle of the appropriate type, then set the color and add the pointer to the list. If the vertices do not form a triangle, then print out "invalid triangle" and the line that corresponds to the triangle.

The sample file results in the following output of which triangles are invalid:

triangle is invalid - "E 0 0 5 5 10 10 255 255 255"
triangle is invalid - "I 0 0 5 5 10 10 255 255 255"
triangle is invalid - "E 0 0 5 5 11 11 255 255 255"
triangle is invalid - "I 0 0 5 5 11 11 255 255 255"
triangle is invalid - "S 0 0 0 0 0 0 255 255 255"
triangle is invalid - "I 0 0 0 0 0 0 255 255 255"
triangle is invalid - "E 0 0 0 0 0 0 255 255 255"
triangle is invalid - "S 10 0 10 0 0 0 255 255 255"
triangle is invalid - "I 10 0 10 0 0 0 255 255 255"
triangle is invalid - "E 10 0 10 0 0 0 255 255 255"
triangle is invalid - "S 0 0 10 0 10 0 255 255 255"
triangle is invalid - "I 0 0 10 0 10 0 255 255 255"
triangle is invalid - "E 0 0 10 0 10 0 255 255 255"
triangle is invalid - "S 10 0 0 0 10 0 255 255 255"
triangle is invalid - "I 10 0 0 0 10 0 255 255 255"
triangle is invalid - "E 10 0 0 0 10 0 255 255 255"

Draw the Image

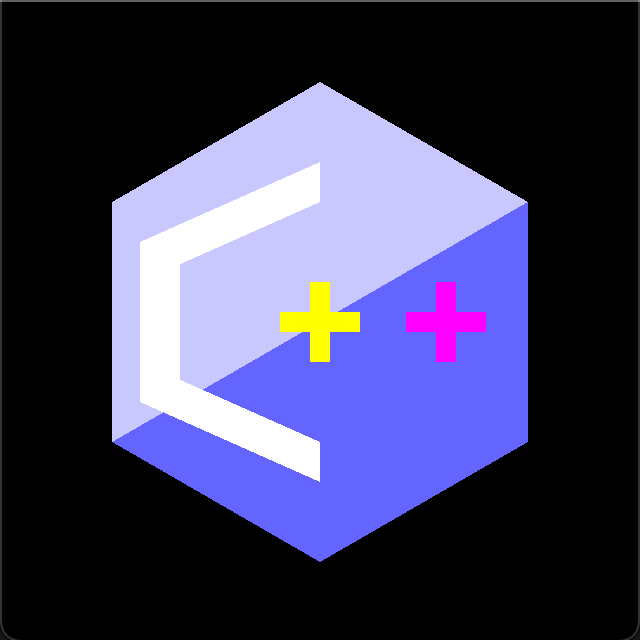

Now that we have a list of valid triangles, when inside our SFML draw loop we'll draw all the triangles. Loop through your triangle list, call the draw() method and pass it the window object. The sample file should generate the following image:

Best Practices To Follow

One clear and consistent coding style used (such as K&R, 1TBS, or Allman).
Code is self-documenting. Variables sensibly named, function names descriptive of their purpose.
Keep your headers clean. Put the absolute minimum required in your headers for your interface to be used. Anything that can go in a source file should. Don't #include any system headers in your .h files that aren't absolutely required in that file specifically.
Implement the Big-3 as appropriate.
Use const wherever possible. If your function takes a parameter and does not modify it, it should be const.
Don't leak memory. Every allocation using new needs to have a corresponding delete.
Don't use global variables. Instead, encapsulate it and design your interfaces effectively.

Testing

The graders will build your program with the campus lab Makefile to build SFML setting the SRC_FILES to the list below in the submission details.

Grading Rubric

Your submission will be graded according to the following rubric.

Points	Requirement Description
6	Abstract Triangle class created correctly.
3	Concrete ScaleneTriangle class created correctly.
3	Concrete IsoscelesTriangle class created correctly.
3	Concrete EquilateralTriangle class created correctly.
3	File read correctly.
10	Runtime Polymorphism used with list of Triangle pointers.
2	Triangles drawn via SFML.
2	Public triangle file generates expected image.
1	Private triangle file generates expected image.
5	The above items make up 33/38 points towards the assignment. The rest of the assignment grade is based on how well the best practices are followed: +5 Code is easily readable, follows best practices, well structured +4 Code is easy to follow, only a few small violations of best practices +3 No egregiously bad practices +2 Lots of violations of best practices +1 Little effort to follow best practices +0 No effort to follow best practices
10	All labs completed and submitted L7A, L7B
+5	Lab7A extra credit.
20	Thank you points automatically granted upon submitting.
68	Total Points
